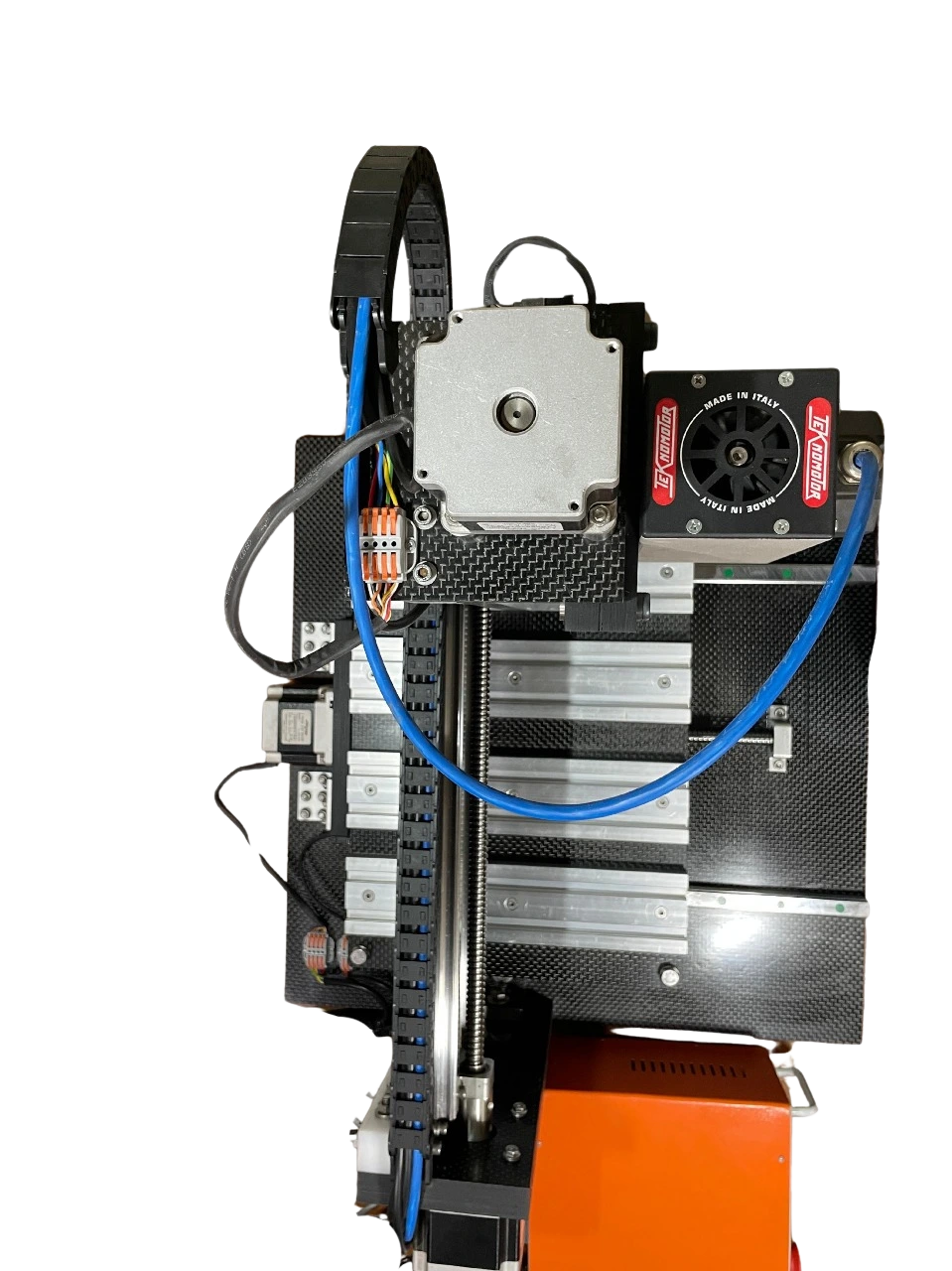

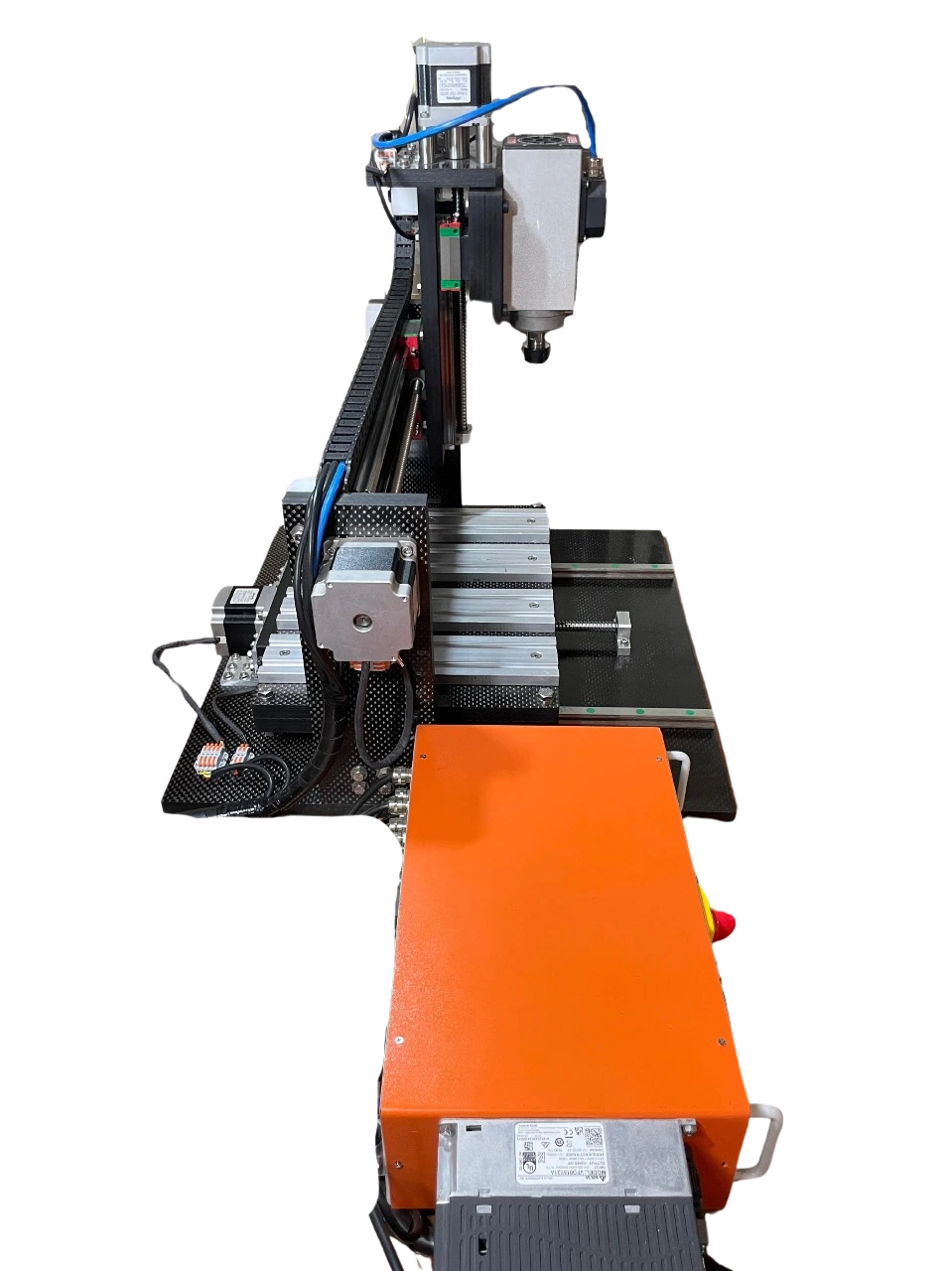

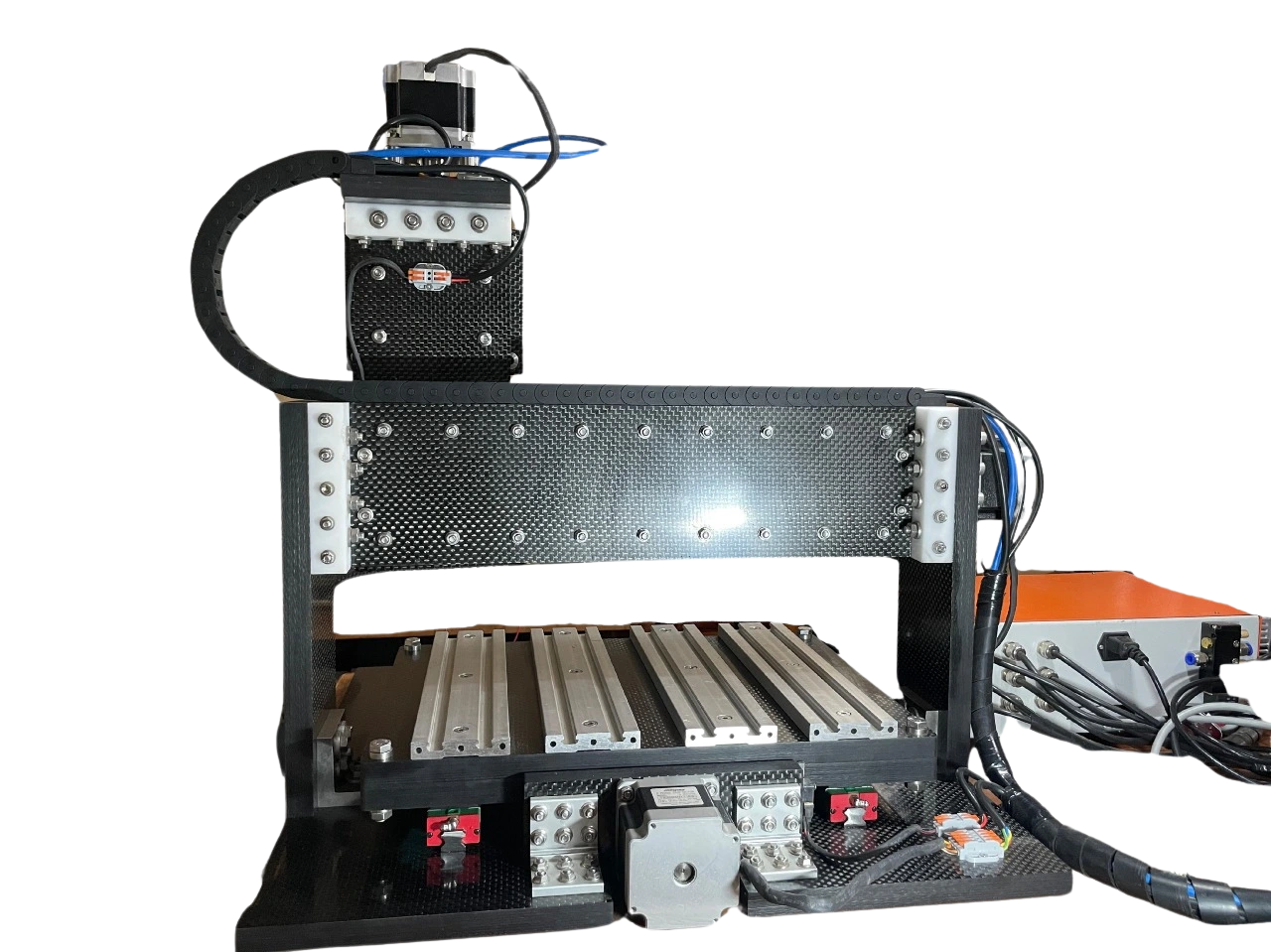

Meteor 1 HP Spindle CNC
Compact and precise, this Meteor-series CNC router leverages a Fixed Gantry System for exceptional accuracy. Ideal for small workshops requiring high stability and fine resolution for tasks like wood carving and plastic engraving.
Key Features:
- Minimal Maintenance
- <50 Micron repeat positioning accuracy
- Open source SW&HW
- High speed spindle
- 80 x80 micron square beam
Dimensions (Outer) - Length:700 MM
Dimensions (Outer) - Width:700 MM
Dimensions (Outer) - Height:450 MM
Dimensions (Build / Cutting Area):400 MM x 300 MM x 100 MM
Max Stock Height (Z Axis):110 MM
Electronics Board - Dimensions:360 (L) x 360 (W) x 190 (H) (MM)
Chassis:Akriti Composite Superstructure
Max Travel Speed (X Axis):4 Meters / Minute
Max Travel Speed (Y Axis):4 Meters / Minute
Max Travel Speed (Z Axis):4 Meters / Minute
Spindle - Brand:Teknomotor - Air Cooled
Spindle - Model:COMNC350400
Spindle - Bearings:Single Bearing
Spindle - Power:0.73 KW / 1 HP
Spindle - Voltage in Volts:380 / 220
Spindle - MAX FREQ. HZ:300 Hz
Spindle - MAX RPM:MAX 18000 RPM
Spindle - Current in Amps (Star / Delta ):2.1 / 3.6 A
Spindle - Weight:3.1 KGs / 6.8 LBS
Spindle - Collet:ER 16
Spindle Maximum Run-out:Less than 20 Microns / 0.02 MM
Spindle - Materials Capability:Soft Materials - Wood, MDF, Plywood, Acrylic, Plastics, PEEK, Delrin, Rubber, Silicon, Composites, Foam, PCB, Styrofoam
Drive - X Axis:Hiwin Rolled Ball Screw & Nut - 16 MM
Drive - Y Axis:Hiwin Rolled Ball Screw & Nut - 16 MM
Drive - Z Axis:Hiwin Rolled Ball Screw & Nut - 16 MM
Guides - X Axis:Hiwin/GLT 20 MM Linear Guide & Block
Guides - Y Axis:Hiwin/GLT 20 MM Linear Guide & Block
Guides - Z Axis:Hiwin/GLT 20 MM Linear Guide & Block
Ball Screw Nut Type:Square Nut Implementation
Stepper Motor (X & Y Axis) - Model:NEMA 24, Bipolar - Stepper Motor (Made in India)
Stepper Motor (X & Y Axis) - Motor type:Hybrid Stepper Motor
Stepper Motor (X & Y Axis) - No. of steps/rotation:200
Stepper Motor (X & Y Axis) - Holding Torque:300 NCm
Stepper Motor (Z Axis) - Model:NEMA 23, Bipolar - Stepper Motor
Stepper Motor (Z Axis) - Motor type:Hybrid Stepper Motor
Stepper Motor (Z Axis) - No. of steps/rotation:200
Stepper Motor (Z Axis) - Holding Torque:110 NCm
Repeat Positioning Accuracy:<50 Microns / <0.05 MM
Single Step Movement by Stepper:2.5 Microns / 0.0025 MM
Stepper Motor Drivers - Max Current:4 AMPS
Stepper Motor Drivers - Voltage Input:24 - 48 Volts DC
Stepper Loop Type:Open Loop
Spindle Control:VFD - Spindle Control
Stock / Material Fixturing Support:Aluminium - M5 T-slot Profiles - Pre-installed
Movement:Simultaneous 3 Axis Motion - Full Interpolation
Machine Movement Type:Fixed Gantry System
Power Input:Single Phase Input - 220V / 110V
Current:16 Amp Plug Point Required
Power Supply:36 V 10 Amp - SMPS
Controller:Arduino - USB
Ship Configuration:Ships Fully Assembled with selected accessories
Continuous Operations:Certified for 24/7 Operations
Warranty:1 Year Warranty - All Parts Covered
Extended Warranty:Up to 10 Years Extended Warranty - Optional
Maintenance Contracts:Annual Maintenance Contracts - Optional
Certification:CE Certified
CAM Support:Fully compliant with GCODE / MCODE (GRBL)
OS Support:Windows XP (64 bit), 7, 8, 10, 11, MacOS X, Linux (any), Raspberry Pi / ARM
Minimum Control PC Specification:2GB of RAM and a 1280 x 768 screen size
Recommended Control PC Specification:8GB of RAM, Intel 8th Gen Processor / AMD Zen 3 Architecture Processor & a minimum 1280 x 768 screen size
Included PC Specifications:Not included
PCB File Types Supported:Excellon & Gerber
Metric / Imperial Support:Supports Both MM & Inches
Calibrated By:All of our measurements are made with Mitutoyo calibrated instruments
Laser - Type:Optional - 10W Optical Diode laser
Laser - Beam Width & Wavelength:Wavelength - 450nm, Beam Width - 80 x 80 Micron
Laser - Total Certified Operational Hours:20,000 Hours
Laser - Materials Compatibility:Cutting Only - Wood, MDF, Plywood, Acrylic (Coloured), Leather, Fabric, plastics. Engraving / Etching on - Steel, Anodized Aluminium, Stone, Glass, PCB, Wood, MDF, Plywood, Acrylic (Coloured), Leather, Fabric, Plastics etc.
Laser - Power Upgrades:20W / 30 W / 40 W / 60 W Upgrade Options
